Quietroom Technical Specifications
| Outside Skin: | White powder coated steel | |
| Inside Skin: | White powder coated perforated panels | |
| Acoustic Infill: | Non-flammable sound absorbing mineral wool | |
| Soundproofing: | 34dB (see Graph) | |
| 55dB upgrade: | Coming Soon | |

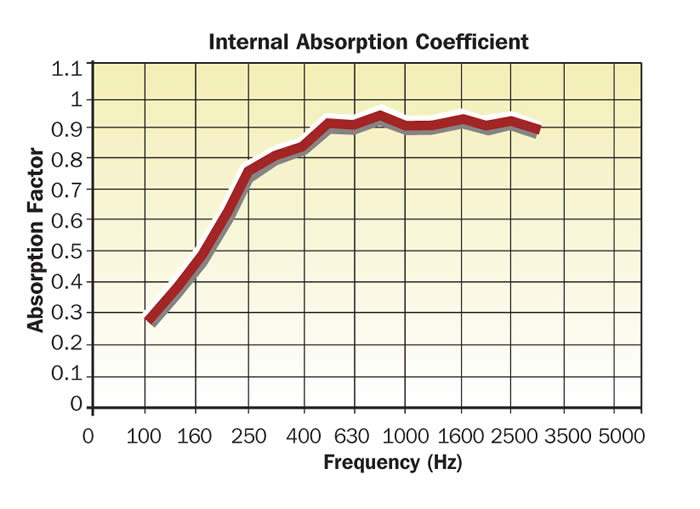

| Internal Sound | ||
| Absorption: | See Graph | |
| Lighting: | Yes | |
| Lockable Door: | Yes | |
| Floor Isolation: | Optional | |
| Internal Height: | 2.2m | |
| External Height: | 2.5m | |
| Other dimensions: | ||
Booth 1 |
External 1.18 x 1.28m | Internal 1.08 x 1.18m |
Booth 2 |
External 1.18 x 1.87m | Internal 1.08 x 1.77m |
Booth 3 |
External 1.18 x 2.46m | Internal 1.08 x 2.36m |
Booth 4 |
External 1.18 x 3m | Internal 1.08 x 2.9m |
Booth 5 |
External 2.36 x 2.46m | Internal 2.26 x 2.36m |
Booth 6 |
External 2.36 x 3m | Internal 2.26 x 2.9m |
Booth 7 |
External 2.95 x 3m | Internal 2.85 x 2.9m |
Booth 8 |
External 3 x 3.54m | Internal 2.9 x 3.44m |
Booth 9 |
External 3 x 4.13m | Internal 2.9 x 4.03m |
Booth 10 |
External 3.54 x 3.64m | Internal 3.44 x 3.54m |
Booth 11 |
External 3.54 x 4.23m | Internal 3.44 x 4.13m |
Booth 12 |
External 4.23 x 4.72m | Internal 4.13 x 4.62m |
| Wall Vision Panels: | 900 x 900mm (when applicable) | |
| Floor Isolation: | Includes 20mm M20AD and 15mm QuietFloor Plus and two layers of 18mm MDF | |
| Lighting Kit: | The booths are supplied with a lighting kit which includes the light itself, flexible cord, RCD plug, electrical conduit and fixings |
|
