FRHD Non-Flammable (High density) Acoustic Foam Technical Specification

Properties

Polymer

Colour:

Open cell PVC/Nitrile

Black

Sheet Size:

1m x 1m

Standard thickness

12 and 25mm enquire about if other thicknesses required

Piece Density:

Density: 240kg/m3

Temperature Range:

-30oC to +110oC

Thermal

0.043 W-m.k @ 20oC



Fire Resistance

FMVSS 302

Self-Extinguishing

BS4735

Self extinguishing

Class 0

BS 476 pt 7

ASTM D1692

max extent burnt 60mm

UL94

Pass Rating HF1 & V-0

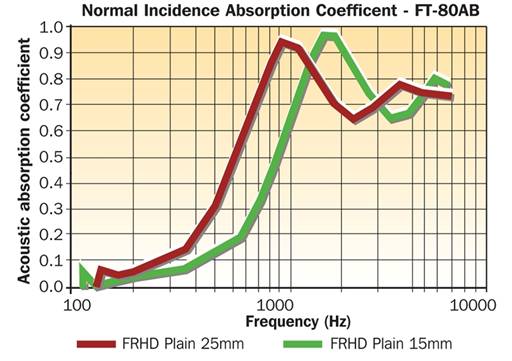

Sound absorption graph showing performance of high density class 0 FRHD sound absorbing foam



The data contained in this specification is believed to be accurate at the time of going to press. Sound Service (oxford) Ltd reserves the right to amend product data without prior notification. Sound Service (Oxford) Ltd can assume no liability for results obtained or damages incurred through the application of the data and test presented.













>
