Cloudsorption - Suspended Sound Absorbing Ceiling Panels

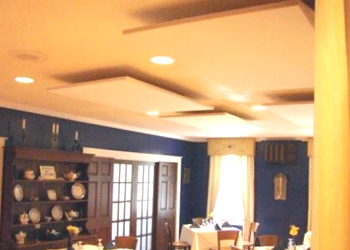

Cloudsorption sound absorbing rectangular panels suspended from ceiling
red Cloudsorption sound absorbing panels suspended from a ceiling Cloudsorption suspended from the ceiling of a lecture hall

Cloudsorption suspended from the ceiling of a lecture hall



overview - ceiling panel sound absorbers

Cloudsorption panels are suspended horizontally from a structural ceiling giving more of a ‘cloud’ effect. This method of installation is a far more efficient way of reducing reverberation within a room because it will absorb noise from both below and above the panel.



testimonial

"Of the Cloudsorption installations we've installed over the past 2 years:
100% of our clients have expressed their satisfaction with the result.
50% of those clients have re-commissioned us to install the Cloudsorption panels in other areas of their premises, ie, following on from a trial installation.
Notably, a global music publisher, have re-commissioned us to install the Cloudsorption panels in other areas of their premises on 6 separate occasions"

                                                                  Oliver, London



description - suspended ceiling sound absorbing panels

Cloudsorption suspended sound absorbing panels for ceilings are a step forward from the more standard tiles applied directly to ceilings or into suspended ceilings. Cloudsorption panels are suspended horizontally from a structural ceiling giving more of a ‘cloud’ effect. This method of installation is a far more efficient way of reducing reverberation within a room because it will absorb noise from both below and above the panel. This enables lower frequency noise to be more easily absorbed because of the air space between the top of the Cloudsorption panels and the underside of the ceiling. This easy to install method of fixing enable the acoustic panels to fit beneath electrical fittings and any other services that may already be installed onto ceilings. This system of installation will fit more easily beneath ceilings that have thermal cooling under BREEAM initiatives.

Sound absorbing panels ideal for schools, offices, music studios and other buildings

Cloudsorption sound absorbing panels are ideal for use in schools, offices, music studios, shopping arcades, airports, restaurants or any area where a new innovative look is required.

Cloudsorption is available in two versions:

Cloudsorption - Echo Plus is similar to our Echosorption Plus acoustic tiles available in 1200 x 600 x 30mm panels produced from high density sound absorbing core with a factory applied white speckled finish on the face side. This panel has bevelled edges to give it a more pleasing appearance. Each panel is supplied with 4 screw hook eyelets which have to be screwed into the back of the panels for suspension. The panels are supplied 8 to a box and the minimum quantity available is one box. With each box we supply 32 eyelets to be fitted by the installer on site.

Colours: Cloudsorption Echo Plus : White speckled coating

Cloudsorption – Textile and similar to our Type C Wallsorption with a fabric coating available in a variety of sizes and colours up to a maximum of 1.2m x 2.7m. Textile is a 25mm thick sound absorber faced on the visible side with an acoustically porous, decorative fabric that is wrapped around all of the edges to give a very presentable appearance and available in a colour of your choice from the colour chart at the bottom of this page

The number of eyelets, hooks and cables vary according to the size of the panel as follows.

Cloudsorption - Textile acoustic panels – 25mm thick

No. of  lengths of 2m cable per panel

No. of normal hooks per panel

No. of eyelet spiral hooks per panel

1200 x 900mm

4

4

4

1200 x 1200mm

4

4

4

1200 x 1500mm

4

4

4

1200 x 1800mm

6

6

6

1200 x 2100mm

6

6

6

1200 x 2400mm

6

6

6

1200 x 2700mm

6

6

6

We can also supply this product in shapes such as triangles, circles, pentagons, hexagons and so on.  Please call us for more information and prices.

Colours : Cloudsorption Textile – over forty standard colours are available. See full chart here

Note!  This product will be made up according to the size and colour required from our range.  Because this product is tailored to customers requirements, we cannot offer any refunds for its return.




"));
